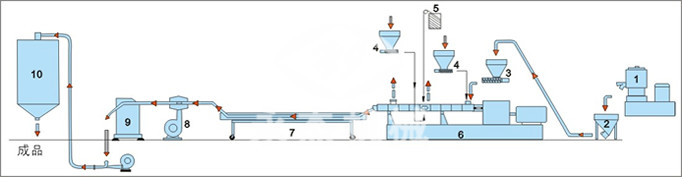

Water cooling strand pelletizing line
1. High speed mixer. 2. Upward feeder. 3. Main feed. 4. Side feeder. 5. Long glass fiber. 6. Twin-screw extruder.
7. Water trough. 8. Blower drier. 9. Pelletizer. 10. Storage bin.

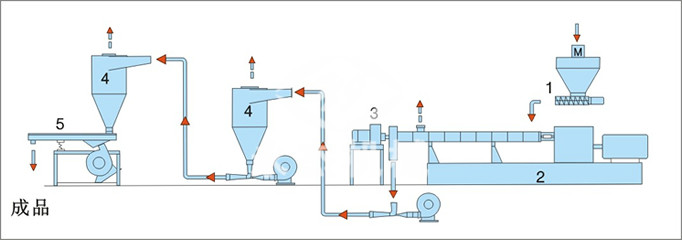

Air-cooling hot-cutting pelletizing line
1. 1. Metering feeder. 2. Twin-screw extruder. 3. Cutting wagon. 4. Cyclone. 5. Vibrating sieve.

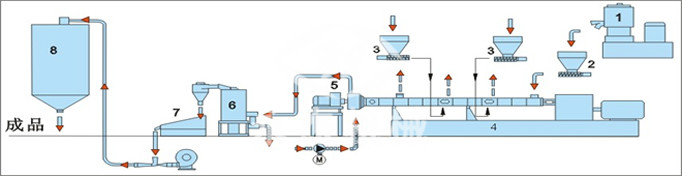

Water- ring pelletizing line
1. High speed mixer. 2. Main feeder. 3. Side feeder. 4. Twin-screw extruder. 5. Water-ring cutter wagon.
6. Centrifugal dehydrator. 7. Vibrating sieve. 8. Product container.

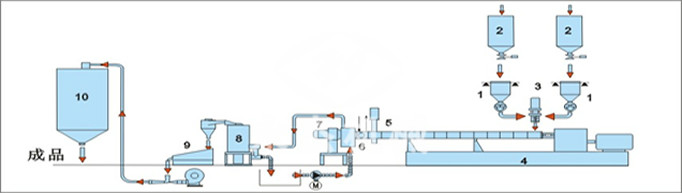

In the water pelletizing line
1. Loss-in-weight. 2. Storage. 3. Mixing head. 4. Main extruder. 5. Driving valve. 6. Screen changer.
7. Under water pelletizer. 8. Centrifugal dehydrator. 9. Vibrating Sieve. 10. Product container.
